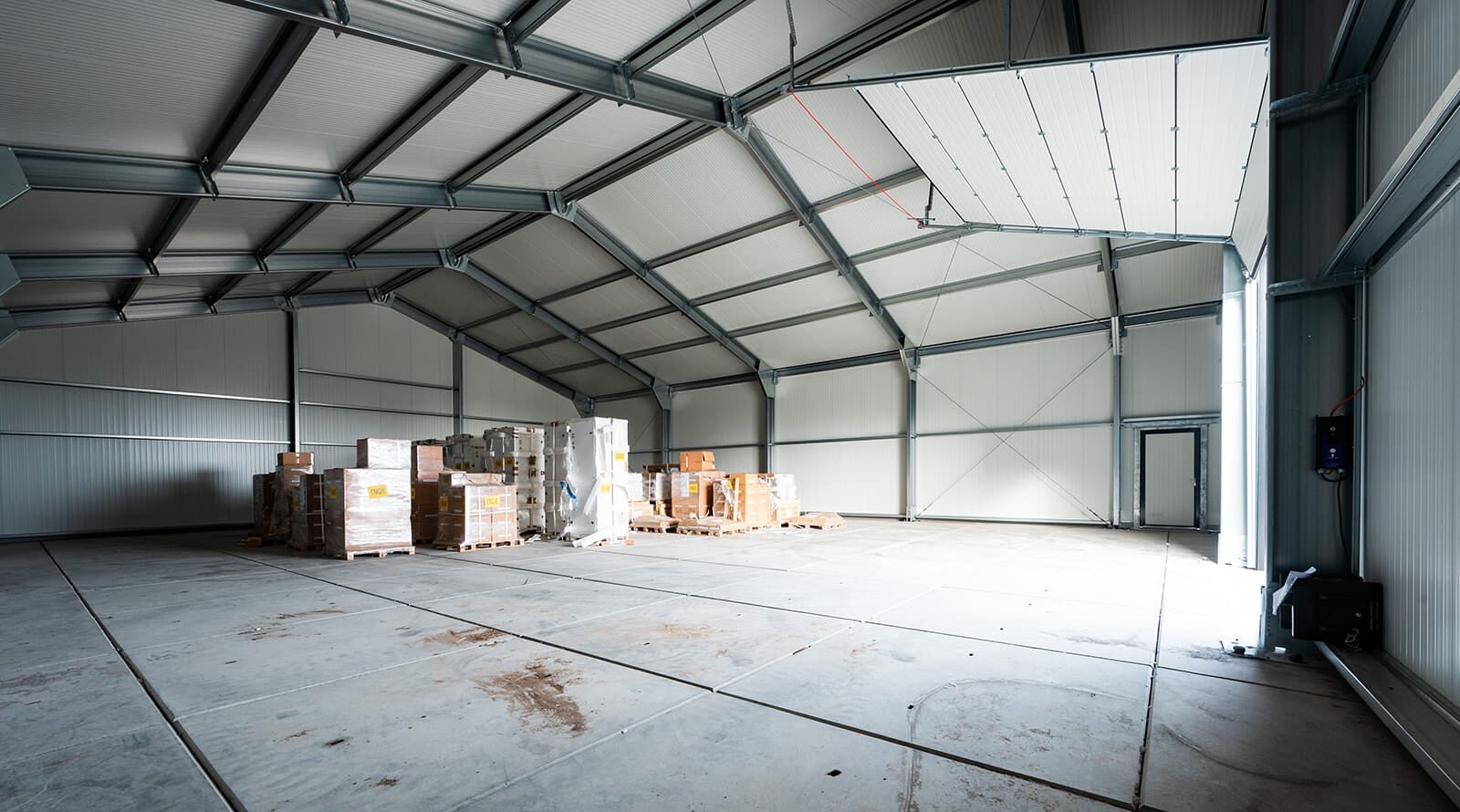

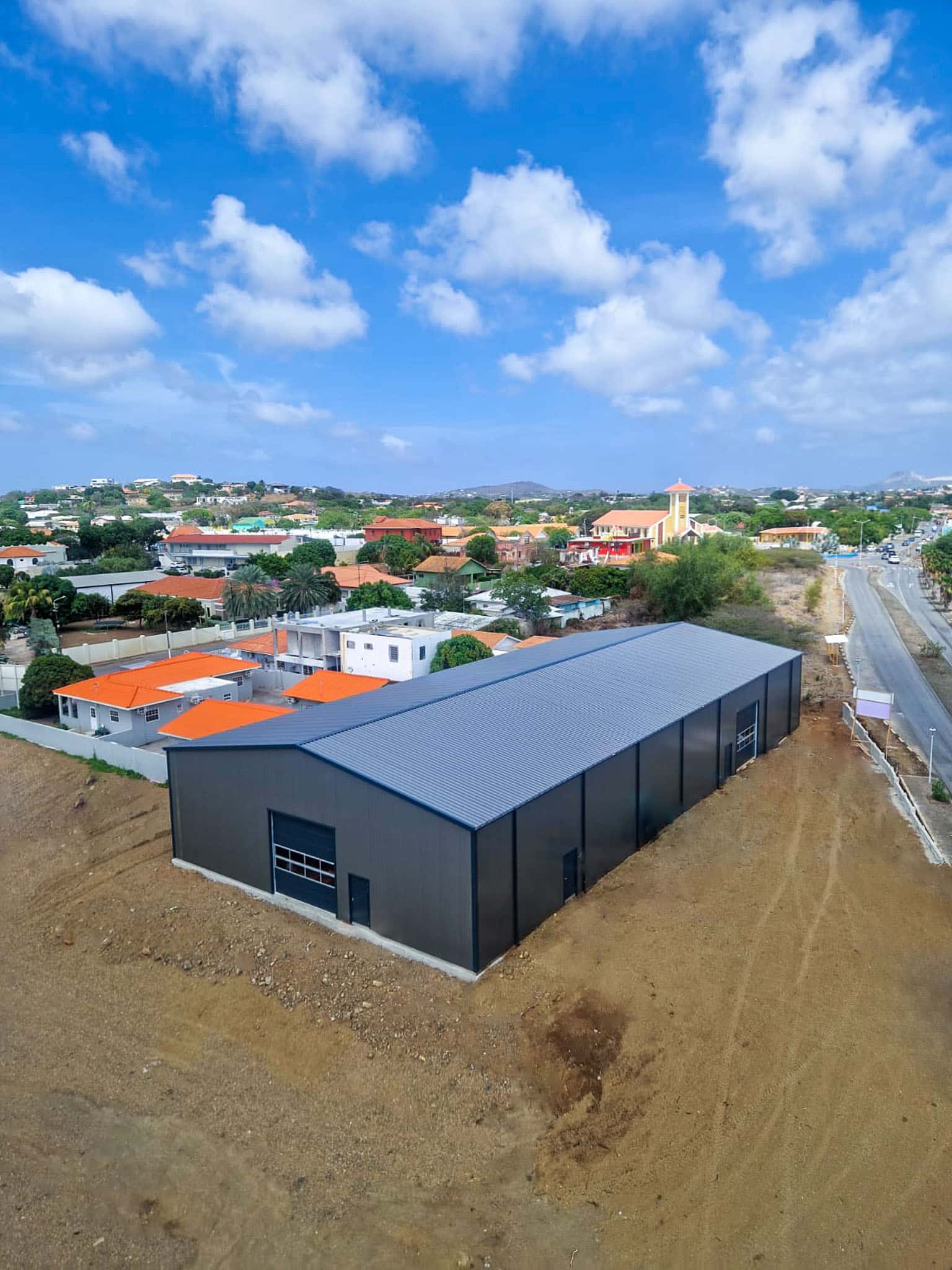

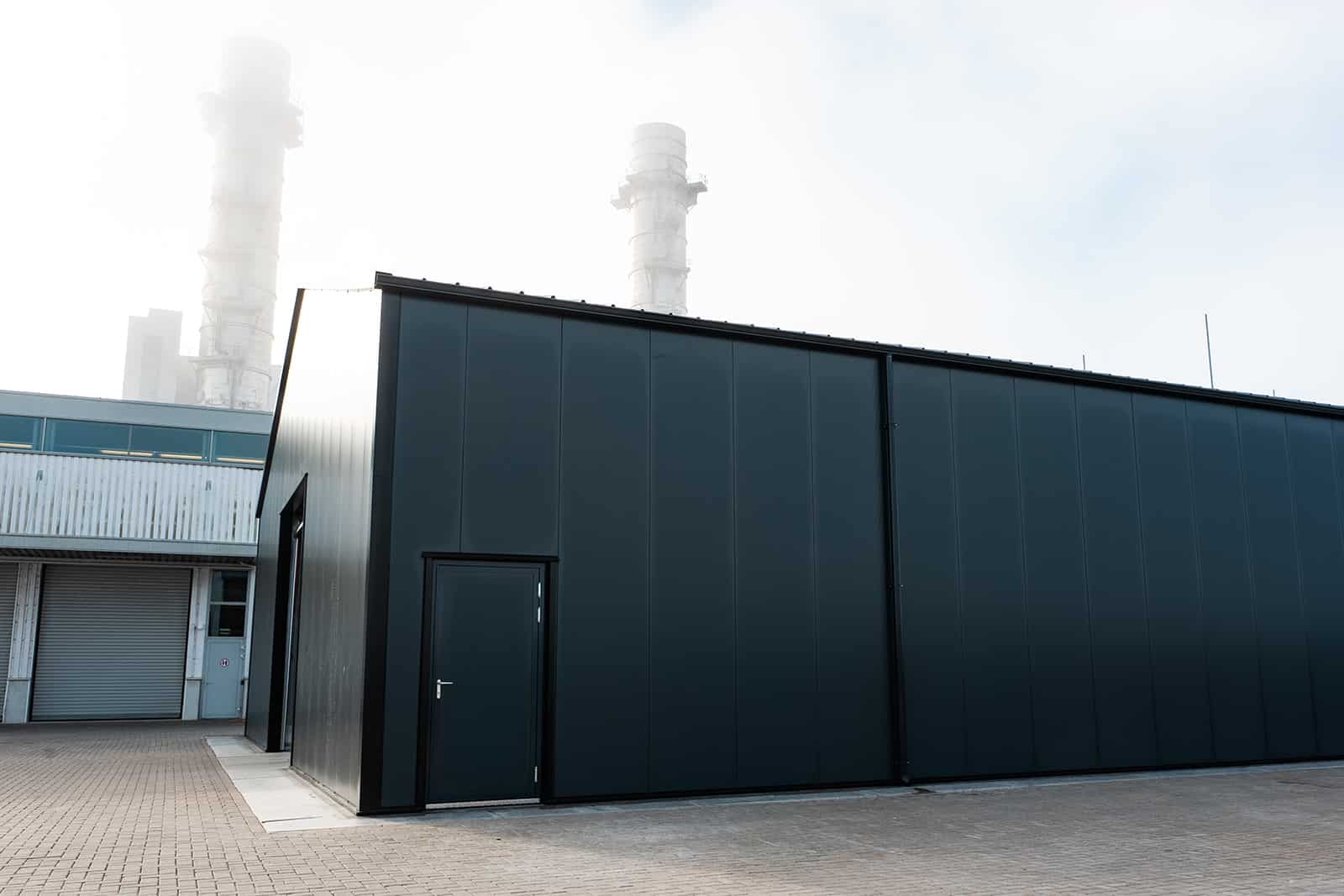

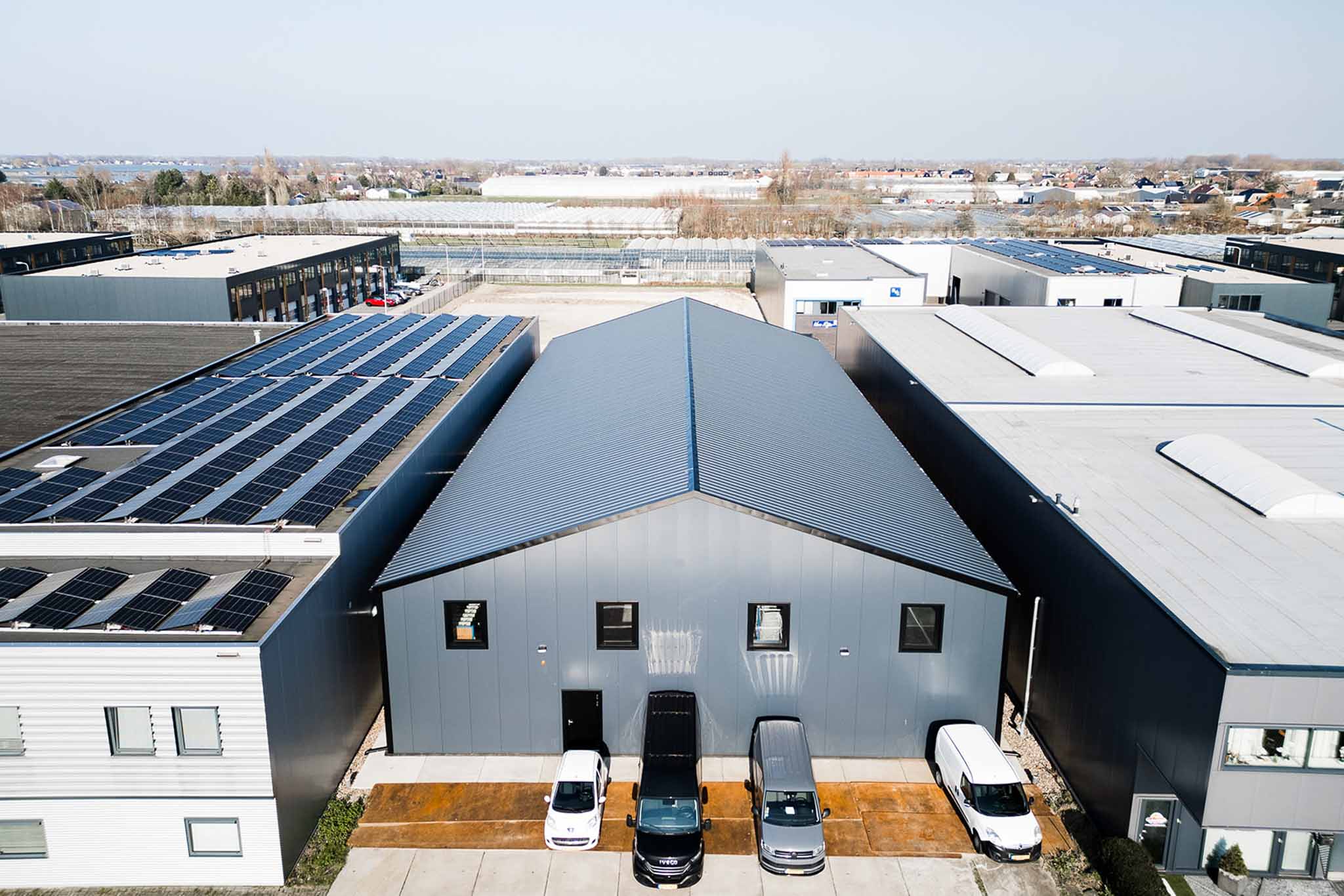

The Flexhal: a smart alternative to traditional business space

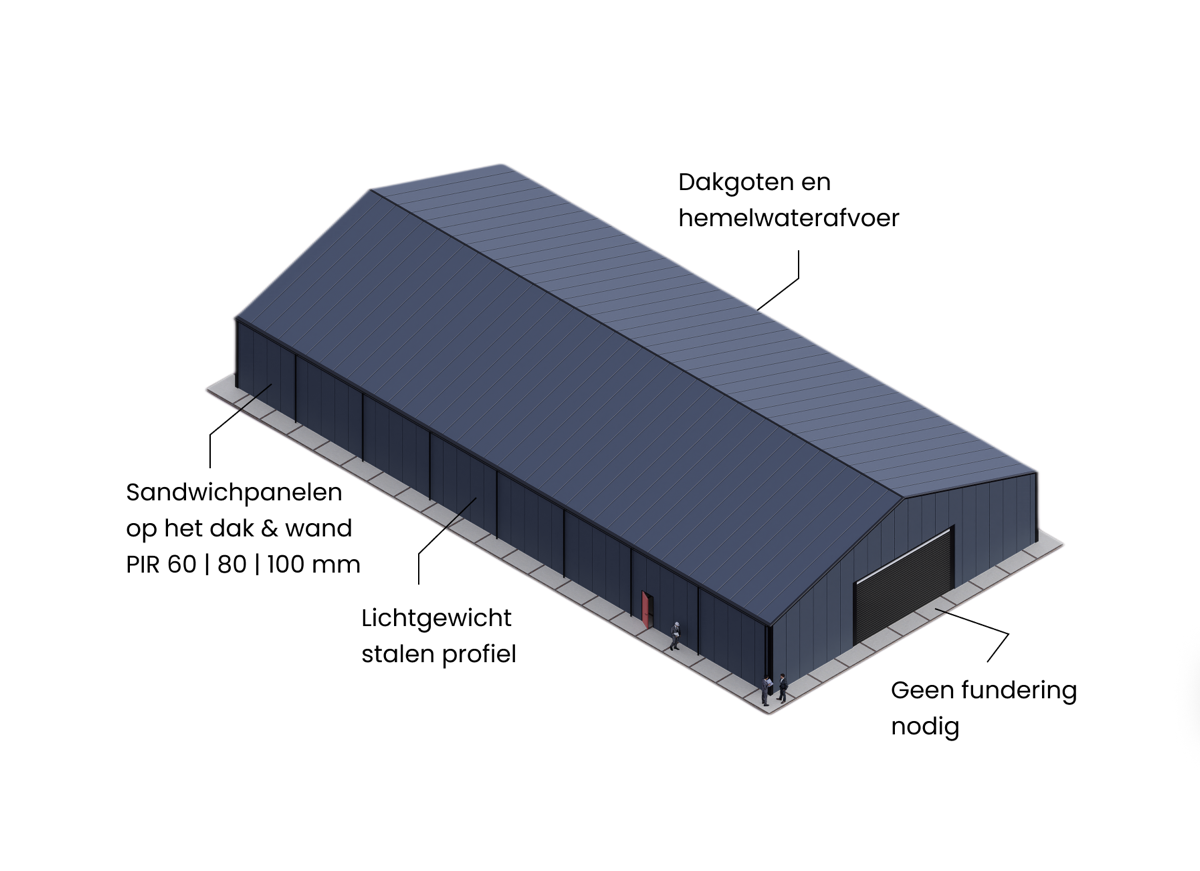

The Flexhal consists of materials of high quality and reliability. We work with materials that can be used circularly for other projects and applications.

Steel

• Cold-rolled
• Standard CEE+450x profile
• Z275 zinc coating finish

Sandwich panels roof & wall

• Standard:
  • PIR | 60 mm | Fire resistance EW30 | Rc value 2.61 m² K/W
• Optional:
  • PIR | 80 mm | Fire resistance EW60 | Rc value 3.55 m² K/W
  • PIR | 100 mm | Fire resistance EW30, EI30 | Rc value 4.5 m² K/W

Water drainage

• Gutters
• Rainwater drainage

Finishing

• Various finishing options possible, depending on the surface.

Stable on any surface and in any wind zone

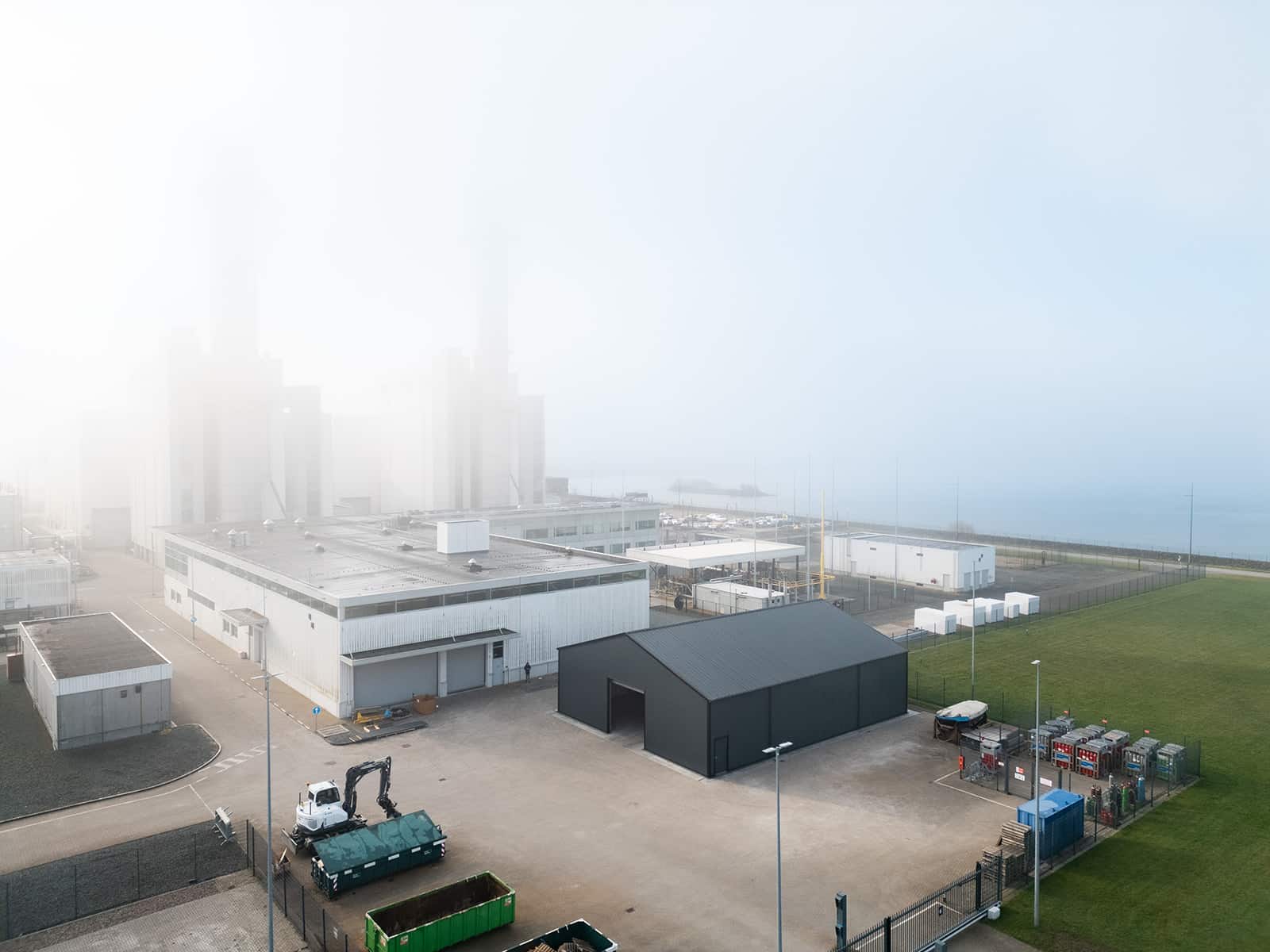

The T5 Flexhal can be placed on almost any paved surface without the need for a foundation. Thanks to the smart anchoring system, the hall always stands firmly, regardless of the location. Furthermore, the Flexhal is suitable for all wind zones. For every new project, we perform a structural assessment to ensure the hall always complies with current regulations and specific location requirements.

Hard surface

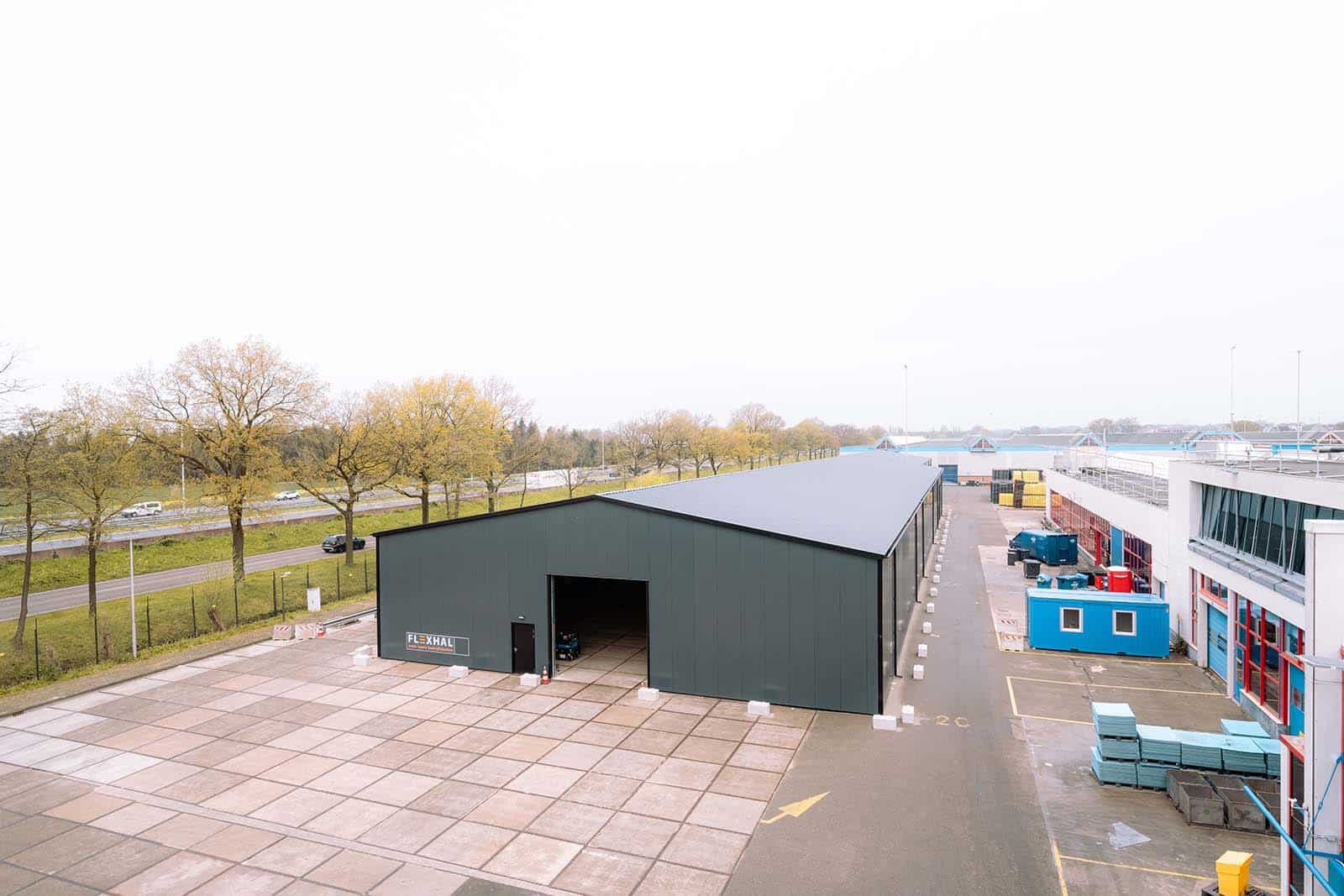

Is there already a paved surface, such as concrete pavers, asphalt, Stelcon slabs, or a concrete foundation? Then we can anchor the Flexhal with special ground anchors. Four 1.5-meter anchors are driven into the ground per base plate. These base plates can compensate for a height difference of 15 cm, ensuring the Flexhal is always level.

Unpaved surface

A Flexhal cannot be placed on an unpaved surface such as grass, sand, or gravel. A paved surface must be laid first. You can arrange this yourself, but we can also assist you. For example, we can supply Stelcon slabs or help save costs by incorporating the anchoring into the concrete foundation using anchoring bolts.

At Donselaar Industry, quality, safety, and sustainability are always central. Therefore, our T5 Flexhals meet strict certifications, and you receive extensive documentation, ensuring you a reliable and flexible solution.

Certifications

• ISO 9001 – Guarantees quality in all our processes, from design to delivery.
• VCA* – Safety first. Our installation staff are trained and certified for a safe working environment.
• ISO 14001 – Sustainability and environmentally friendly solutions are at the core of our policy.

Extensive documentation

Every T5 Flexhal is delivered with:

• Structural documentation according to NEN-EN 1990 (Basis of structural design) – All technical details and specifications clearly bundled.
• Technical drawings – For full insight into the construction.
• Fire certificate – Complies with the strictest European standards. The standard version of the Flexhal has a fire class of B-S1-D0 according to EN13501-1:2007 building decree and can be extended if required.
• Structural calculations – Carefully compiled by certified engineers for optimal safety and durability.
• High wind load – All structures are resistant to at least wind force 11. As a result, they meet the requirements set by the building decree.

Complete your T5 Flexhal!

Fully tailor the T5 Flexhal to your business needs with our extensive options:

• Electric roller door (5 m x side height): Rolls up compactly above the door opening, ideal for spaces with limited height.

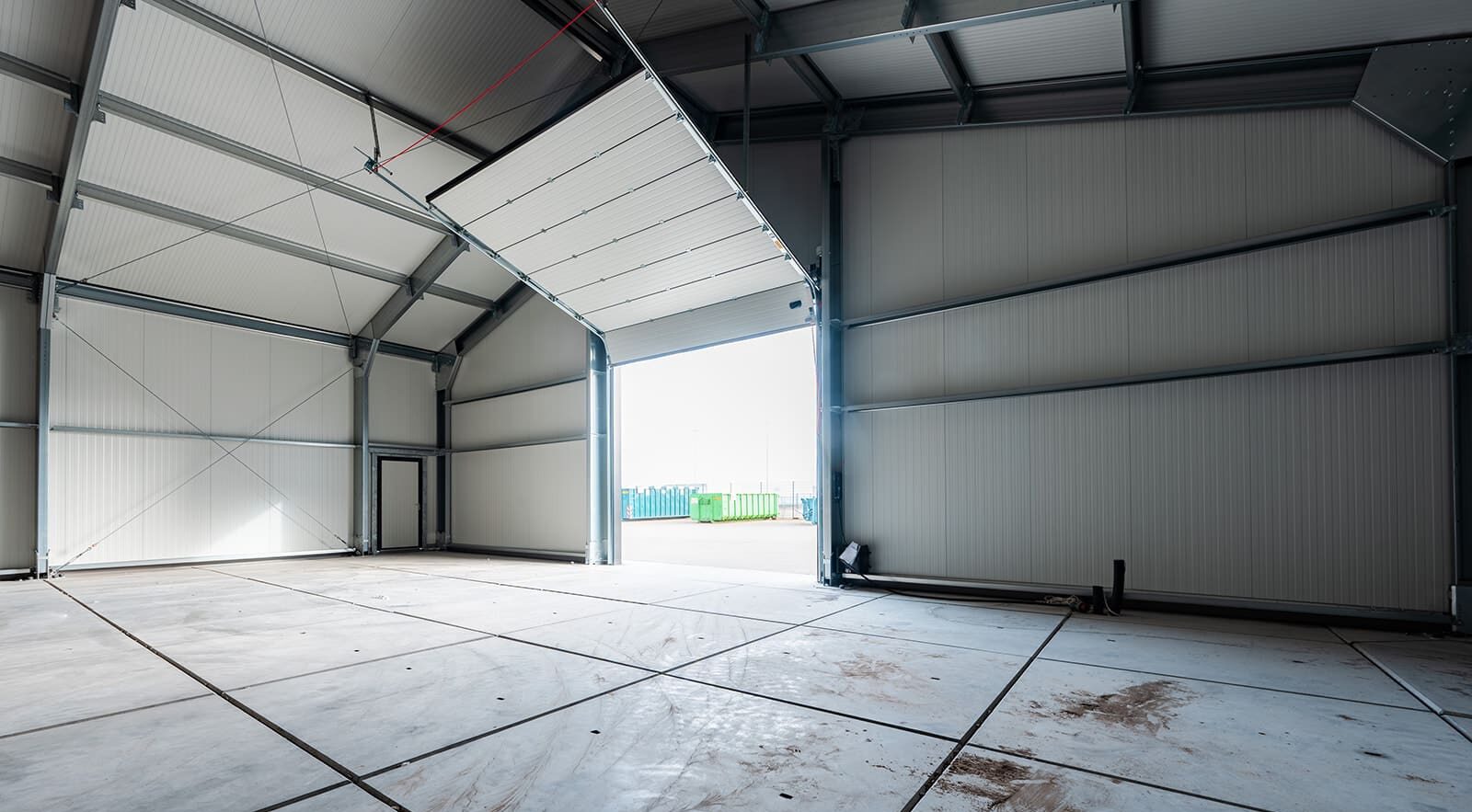

• Overhead door: Slides inward and lies parallel to the ceiling. Offers a neat appearance, perfect for logistical applications.
• Manual sliding door: Simple and no power required. Ideal for secondary access points without electrical operation.
• Wicket doors: Practical and safe for daily use by personnel and visitors.
• Windows: Add natural light for a pleasant and efficient working environment.
• Partition walls: Create flexible layouts for storage, workstations, or other applications.

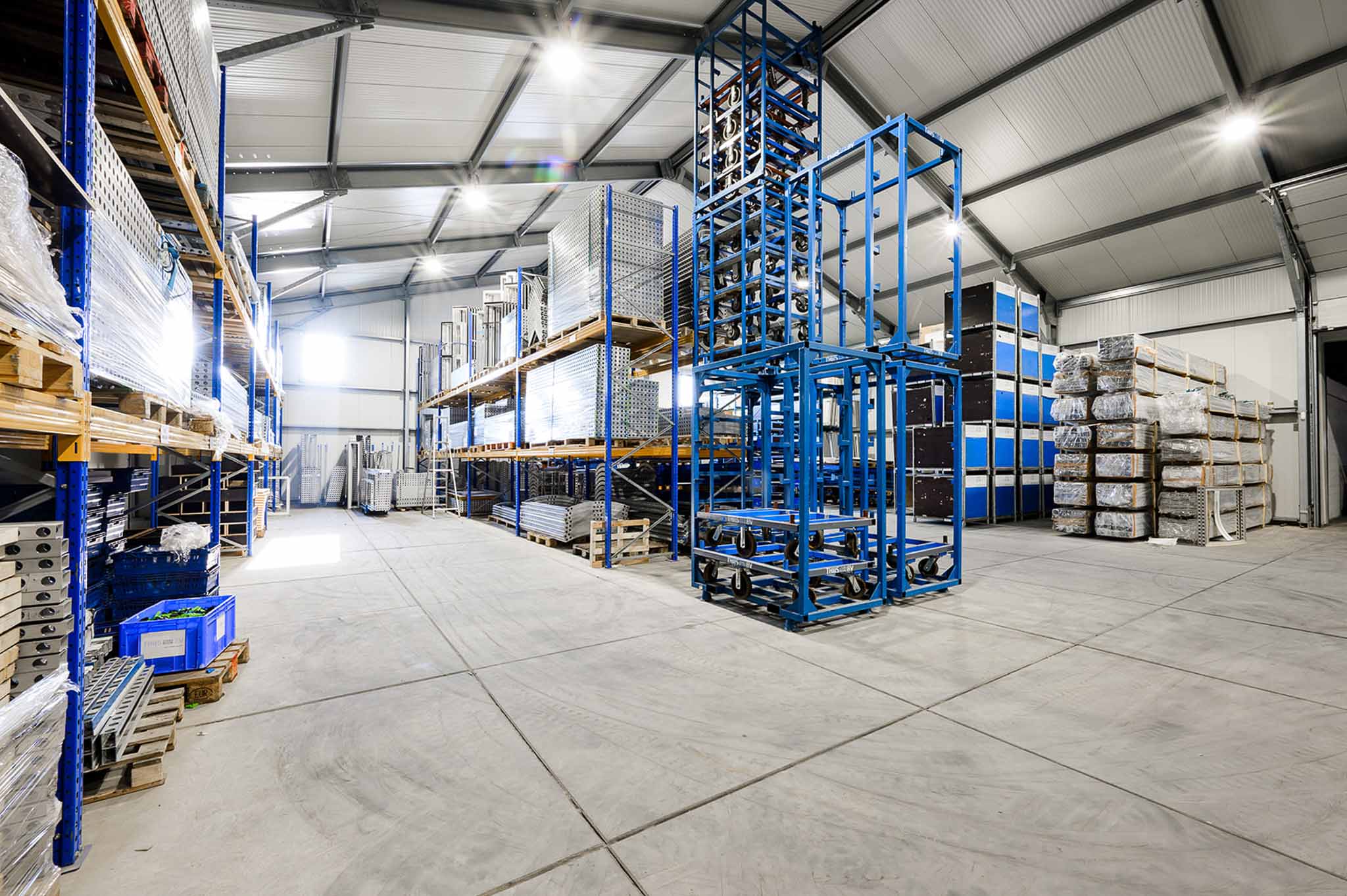

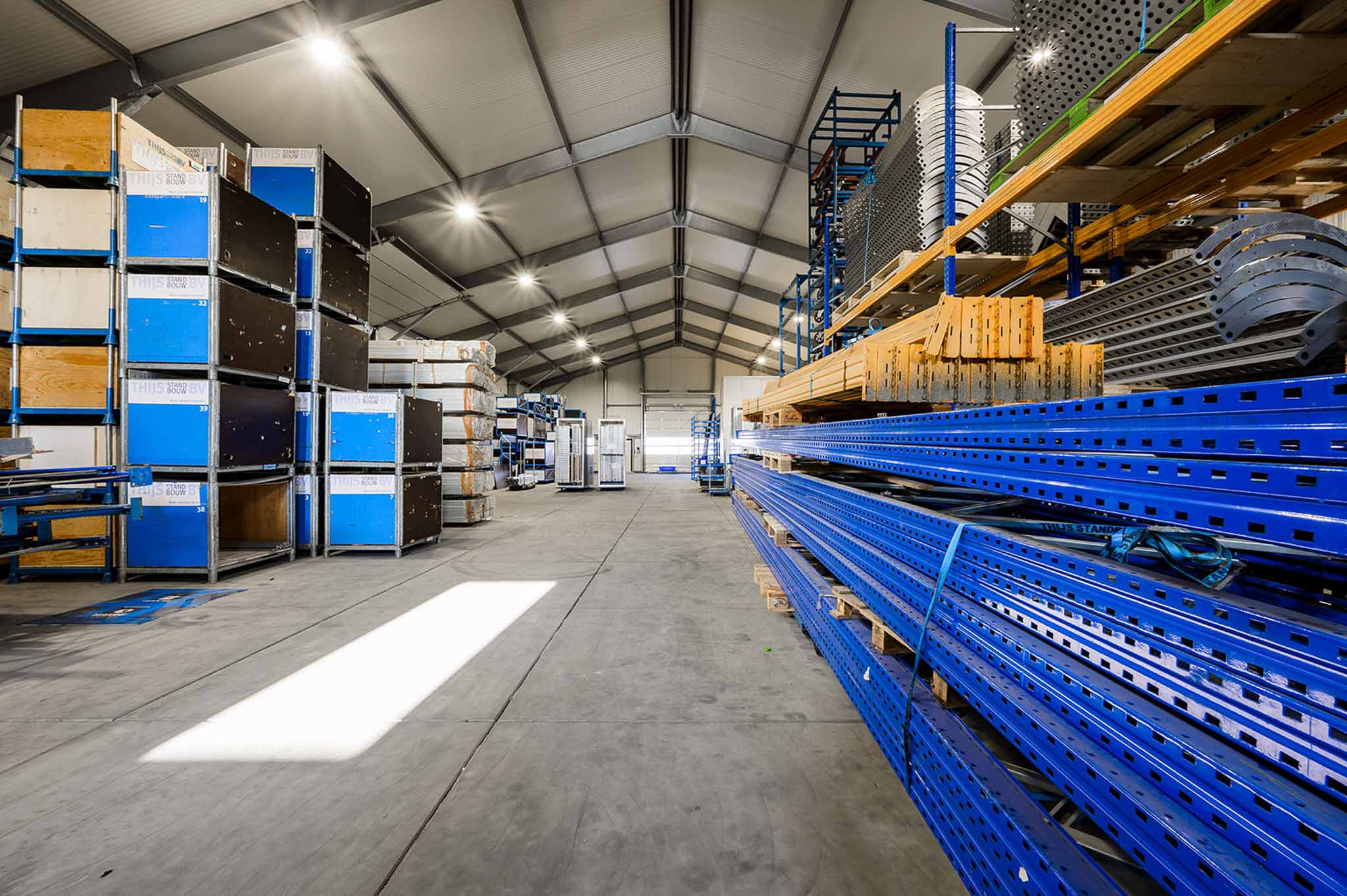

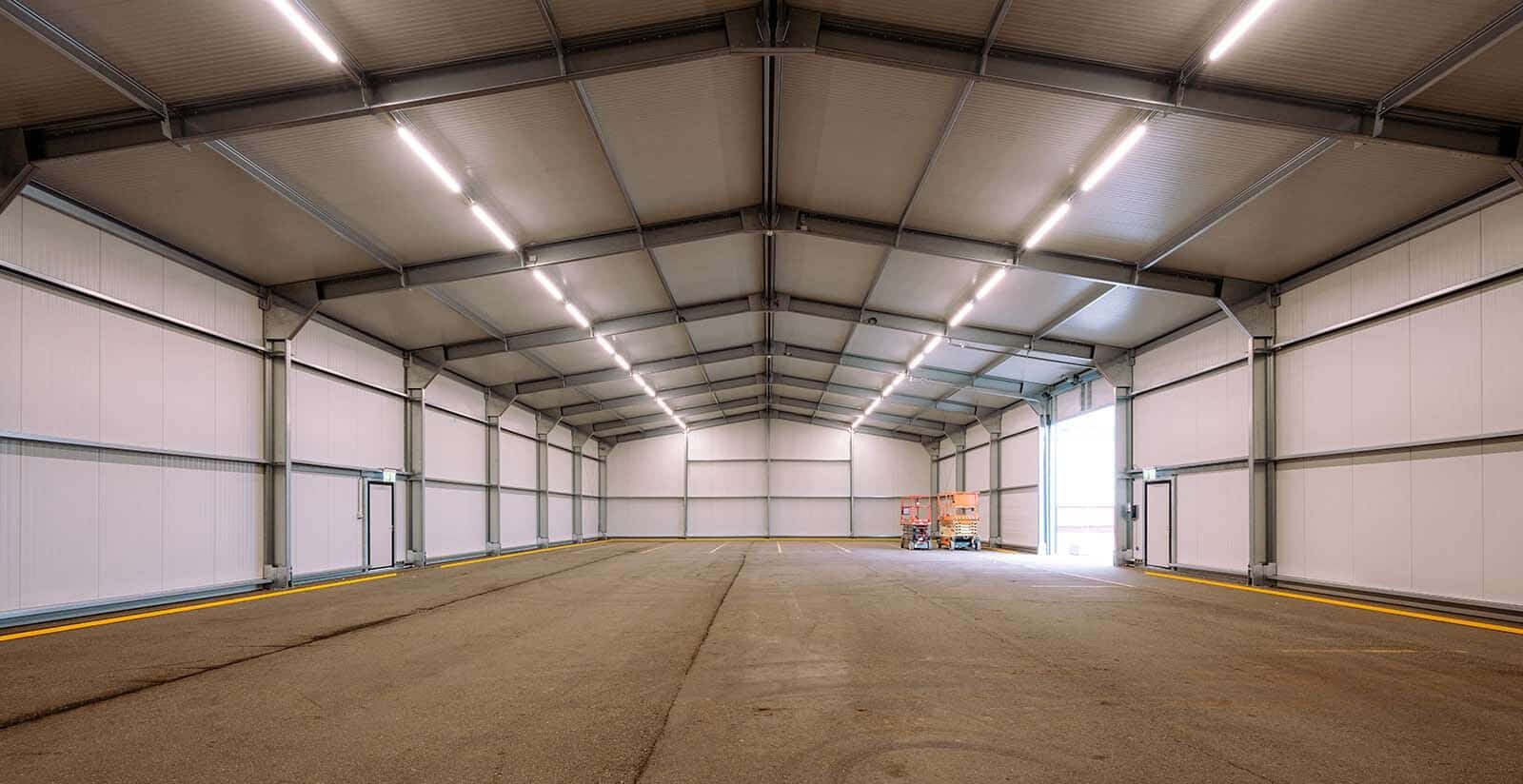

• LED lighting: Lighting for a bright, safe working environment, day and night.
• Collision protection: Protect the hall against damage from vehicles with sturdy collision protection.
• Sandwich panels in other RAL colors: Possibility to adapt the Flexhal to the environment or current business premises.
