Width
10 meters | 15 meters | 20 meters | 25 meters | 30 meters
Different widths on request
Length
Unlimited extension by 5 meters
Side height
3 meters | 4.5 meters | 6 meters
Different side heights on request

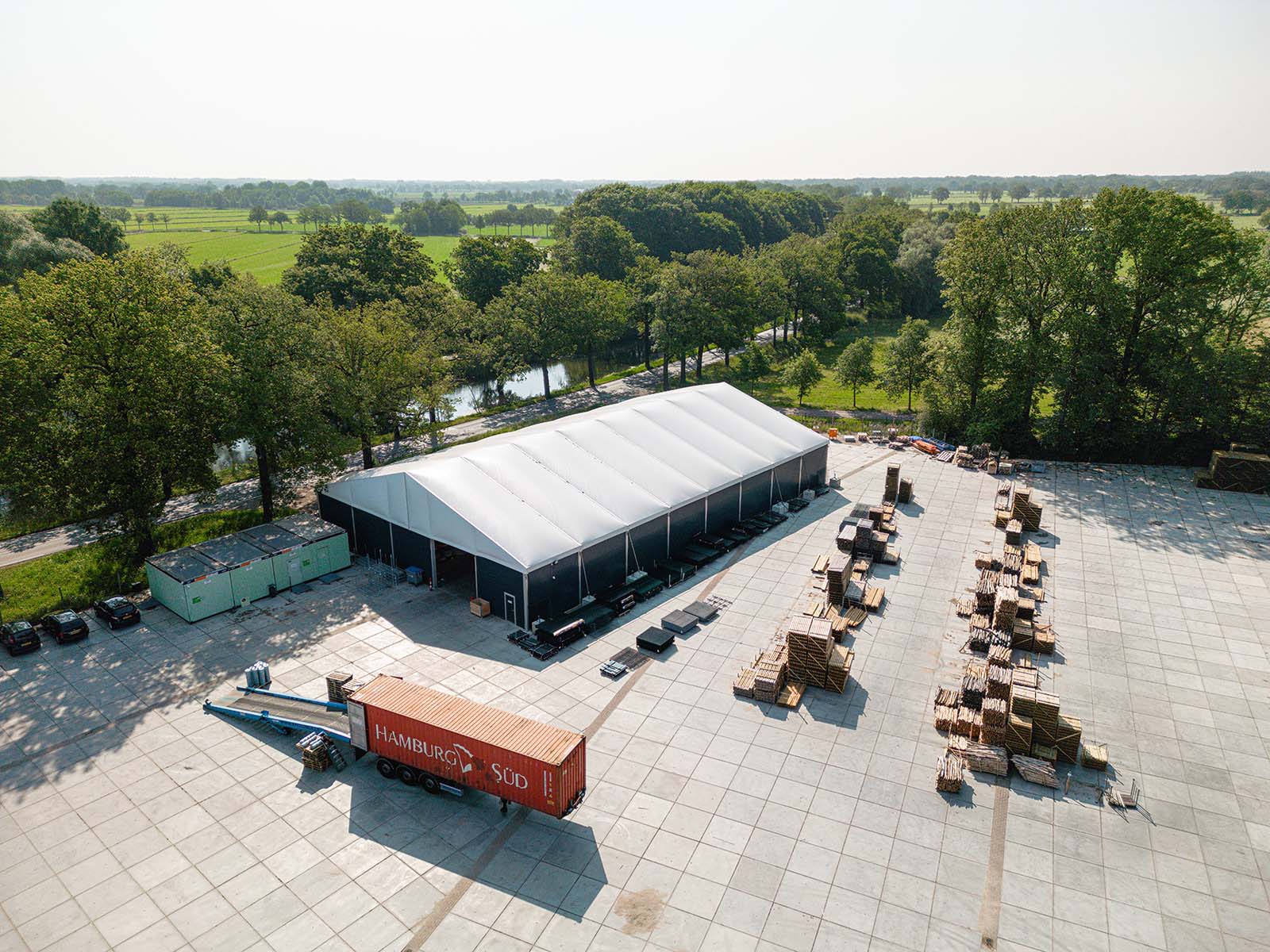

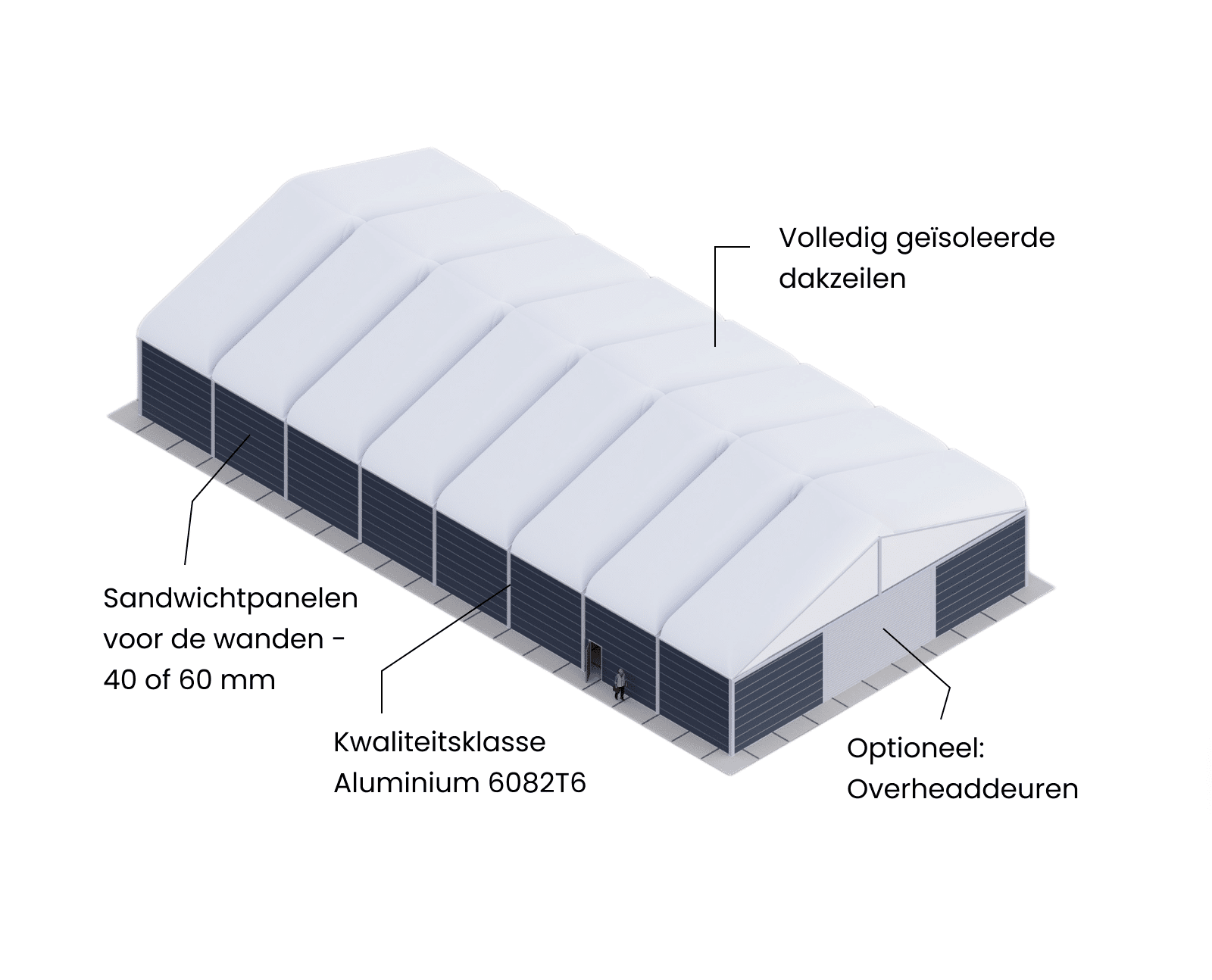

The T4 fully insulated tent hall is equipped with high-quality materials, making it reliable. We work with materials that can be used circularly for other projects and applications, among other things.
Aluminum
- Quality class 6082T6
- European anodized
- Strong & corrosion-resistant
Sandwich panel wall cladding
- Standard:
- 40 mm thickness | Rc value 1.66 m² K/W
- Optional:
- 60 mm thickness | Fire resistance EW30 | Rc value 2.61 m² K/W
Roofing
- Standard:

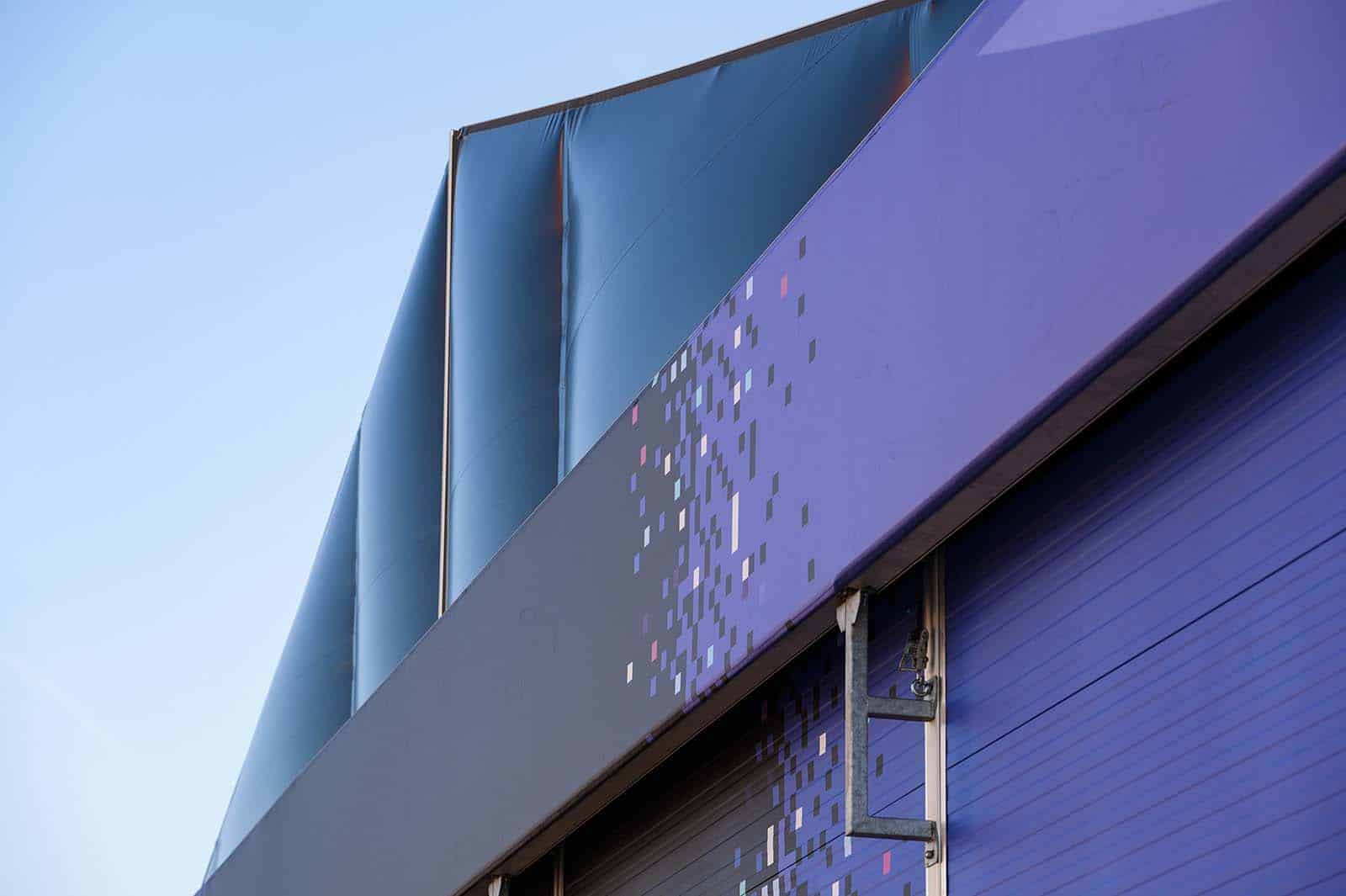

- Insulated translucent PVC roof tarpaulin | 650 g/m² | UV-resistant | White | Equipped with compressor
- Optional:
- Translucent PVC roof tarpaulin | 750 g/m2 | UV-resistant | Color of choice
- Translucent PVC roof tarpaulin | 650 g/m2 | Not UV-resistant | White translucent
- Sandwich panels 40 mm thickness | Rc value 1.66 m² K/W
- Sandwich panels 60 mm thickness | Fire resistance EW30 | Rc value 2.61 m² K/W
Floor
- Standard:
- Optional:
- System floor (heavy-duty floor)
- Stelcon slabs
Stable on any surface
The T4 fully insulated tent hall can be placed on almost any surface without the need for a foundation. Thanks to our anchoring system, the tent hall remains stable, regardless of whether the surface is asphalt, concrete, or even unpaved ground. Our constructions can withstand wind loads of up to wind force 11.
Paving, asphalt, and unpaved ground
On paving, asphalt, or unpaved surfaces, we can anchor the tent hall with special ground anchors. A number of ground anchors are driven through each base plate to anchor the canopy to the ground.
Concrete foundation or stelcon slabs
On a concrete foundation or stelcon slabs, we use wedge anchors or concrete clickers. These are special concrete screws that ensure the base plate is also well-anchored in this surface.
Optional with concrete blocks
If it is not possible to anchor the tent hall into the ground, we can use special concrete blocks that serve as ballast and anchoring.
At Donselaar Industry, quality, safety, and sustainability are always central. That is why our T4 fully insulated tent halls meet strict certifications and you receive extensive documentation, so you are assured of a reliable and flexible solution.
Certifications
- ISO 9001 – Guarantees quality in all our processes, from design to delivery.
- VCA* – Safety first. Our installation staff are trained and certified for a safe working environment.
- ISO 14001 – Sustainability and environmentally friendly solutions are at the core of our policy.
Extensive documentation
Every T4 fully insulated tent hall is delivered with:
- Structural documentation according to NEN-EN 1990 & NEN-EN 13782 – All technical details and specifications clearly bundled.
- Technical drawings – For full insight into the construction.
- Fire certificate – Complies with the strictest European standards.
- Structural calculations – Carefully compiled by certified structural engineers for optimal safety and durability.
- High wind load – All constructions are resistant to wind force 11 or higher. As a result, they meet the requirements set according to the building decree.
Complete your T4 tent hall!

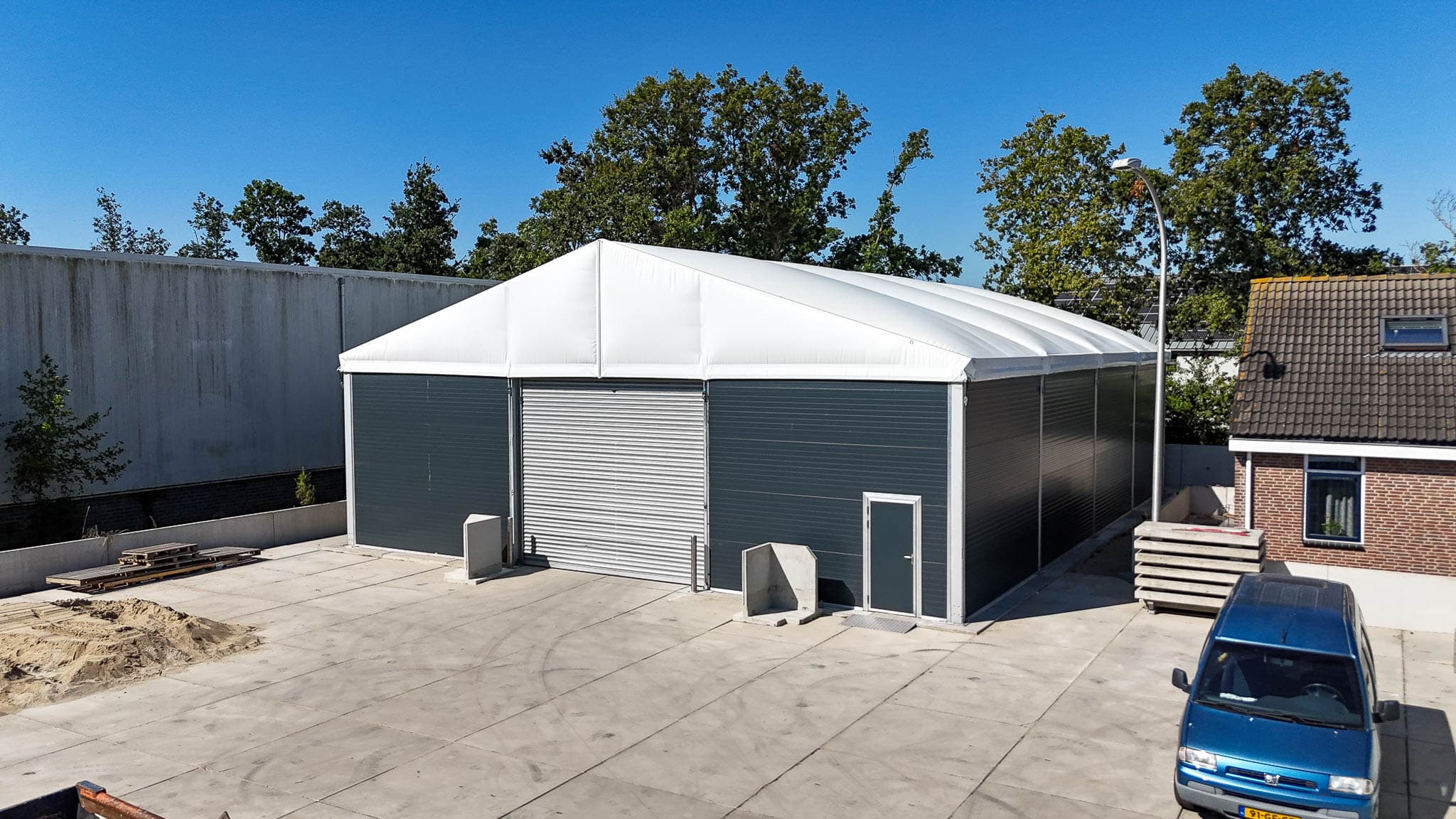

Tailor the fully insulated tent hall to your specific needs with our handy extra options. Our T4 tent hall is delivered as standard with 1 roller door and 1 wicket door. With these additions, you ensure even more functionality, comfort, and safety:
- Electric roller door (5 m x side height): Rolls up compactly above the door opening, ideal for spaces with limited height.
- Overhead door: Slides inward and lies parallel to the ceiling. Offers a neat appearance, perfect for logistical applications.
- Manual sliding door: A practical and economical access option.
- Wicket doors: For fast and safe access to the tent hall.
- Windows: Let in natural light and create an open and pleasant space.
- LED lighting (250 watts): Ensure optimal visibility, even in low daylight.
- Collision protection: Protect the construction and vehicles from damage.
- Glass walls: Provide a luxurious appearance, perfect for showrooms or offices.
- Ballast blocks: A reliable solution for locations where ground anchoring is not possible.
- Sandwich panels in other RAL color: Possibility to adapt your tent hall to the environment or current business premises.
- PVC gutter including outlet: Ensures proper water drainage along the tent hall.
With these options, you make your T4 tent hall fully custom-made and suitable for your situation. Contact us for more information or request a quote directly!
