Width
2.5 meters | 5 meters | 7.5 meters | 10 meters | 12.5 meters | 15 meters | 20 meters | 25 meters | 30 meters
Different widths on request
Length
Unlimited extension by 5 meters
Side height
3 meters | 4.5 meters | 6 meters
Different side heights on request

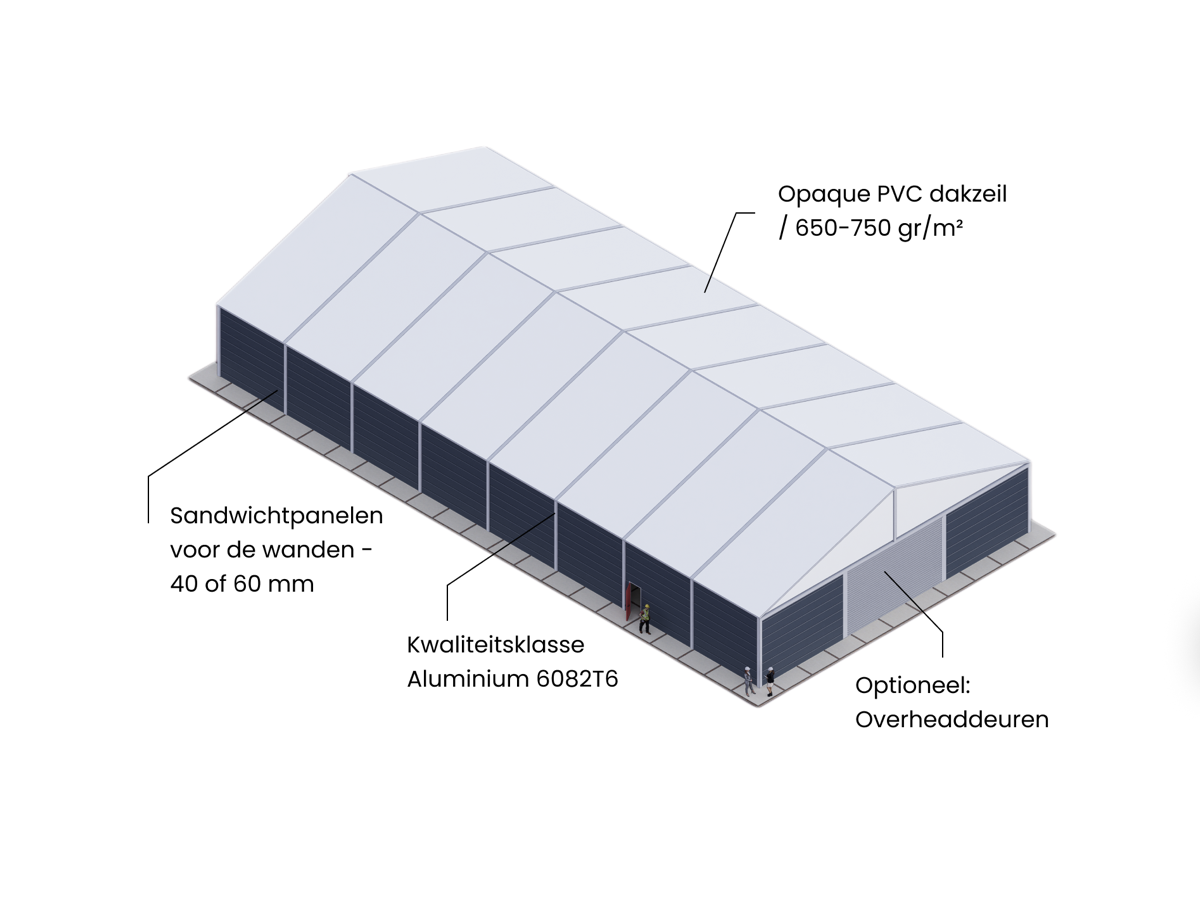

The T3 partially insulated tent hall is equipped with high-quality materials, making them reliable. We work, among other things, with materials that we can use circularly for other projects and applications.
Aluminum
- Quality class 6082T6
- European anodized
- Strong & corrosion-resistant
Sandwich panels
- Standard:
- 40 mm thickness | Rc value 1.66 m² K/W
- Optional:
- 60 mm | Fire resistance EW30 | Rc value 2.61 m² K/W
Roofing
- Standard:
- Opaque PVC roof tarpaulin | 750 gr/m² | UV-resistant | White
- Optional:
- Translucent roof tarpaulin | 650 gr/m² | Not UV-resistant | White translucent
- Opaque roof tarpaulin | 750 gr/m² | Color of choice
Floor
- Standard:
- Optional:
- System floor (heavy-duty floor)
- Stelcon slabs
Stable on any surface
The T3 partially insulated tent hall can be placed on almost any surface without the need for a foundation. Thanks to our anchoring system, the tent hall remains stable, regardless of whether the surface is asphalt, concrete, or even unpaved ground. Our structures can withstand wind loads of force 11.
Paving, asphalt, and unpaved ground
On paving, asphalt, or unpaved surfaces, we can anchor the tent hall with special ground anchors. A number of ground anchors are driven through each base plate to anchor the canopy to the ground.
Concrete foundation or stelcon slabs
On a concrete foundation or stelcon slabs, we use wedge anchors or concrete clickers. These are special concrete screws that ensure the base plate is also well-anchored in this surface.

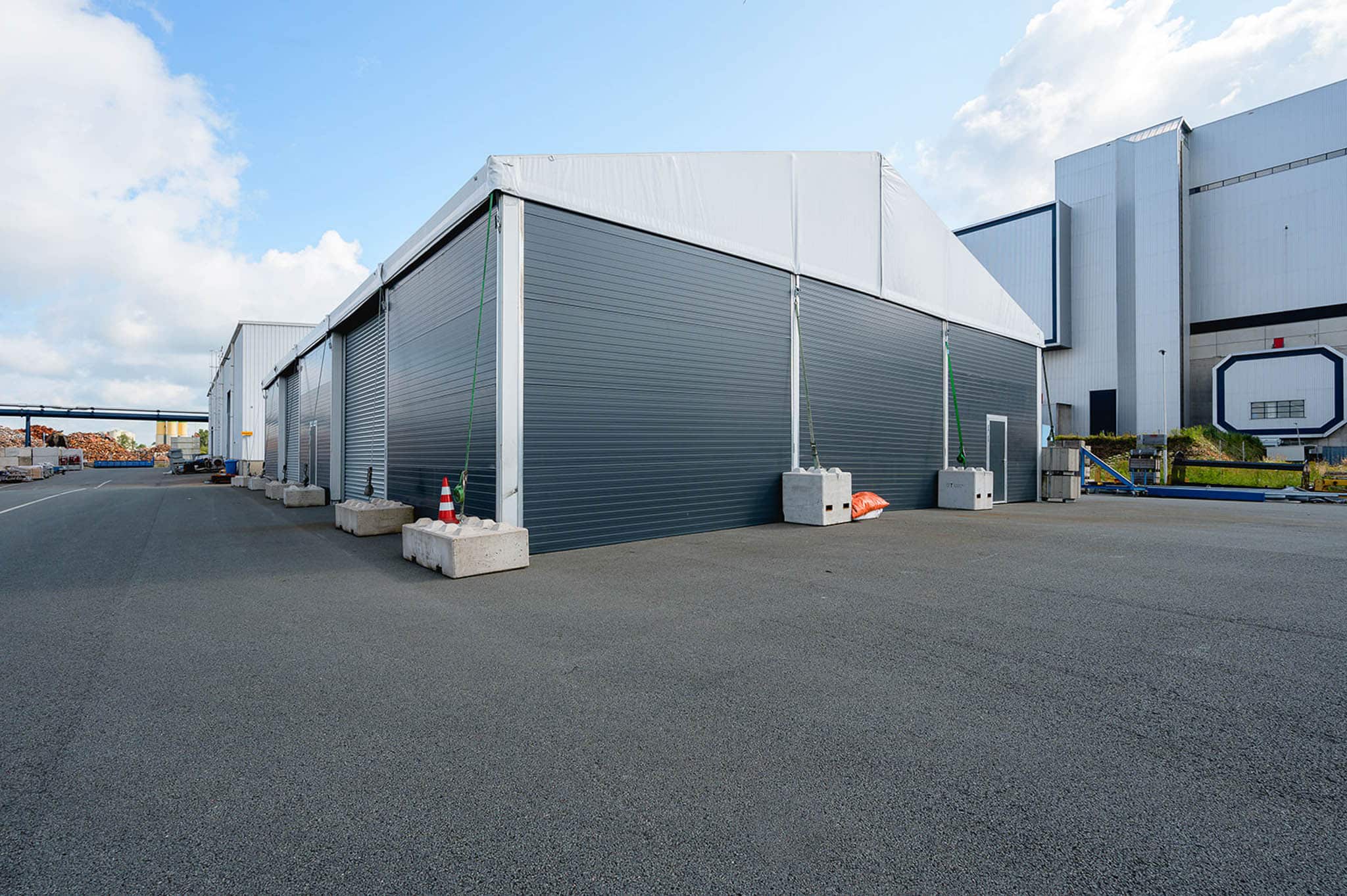

Optional with concrete blocks
If it is not possible to anchor the tent hall into the ground, we can use special concrete blocks that serve as ballast and anchoring.
At Donselaar Industry, quality, safety, and sustainability are always central. Therefore, our T3 partially insulated tent halls meet strict certifications and you receive extensive documentation, so you are assured of a reliable and flexible solution.
Certifications
- ISO 9001 – Guarantees quality in all our processes, from design to delivery.
- VCA* – Safety first. Our installation staff are trained and certified for a safe working environment.
- ISO 14001 – Sustainability and environmentally friendly solutions are at the core of our policy.
Extensive documentation
Every T3 partially insulated tent hall is delivered with:
- Structural documentation according to NEN-EN 1990 & NEN-EN 13782 – All technical details and specifications clearly bundled.
- Technical drawings – For full insight into the construction.
- Fire certificate – Complies with the strictest European standards.
- Structural calculations – Carefully compiled by certified structural engineers for optimal safety and durability.
- High wind load – All constructions are resistant to wind force 11 or higher. As a result, they meet the requirements set according to the building decree.
Complete your partially insulated tent hall!

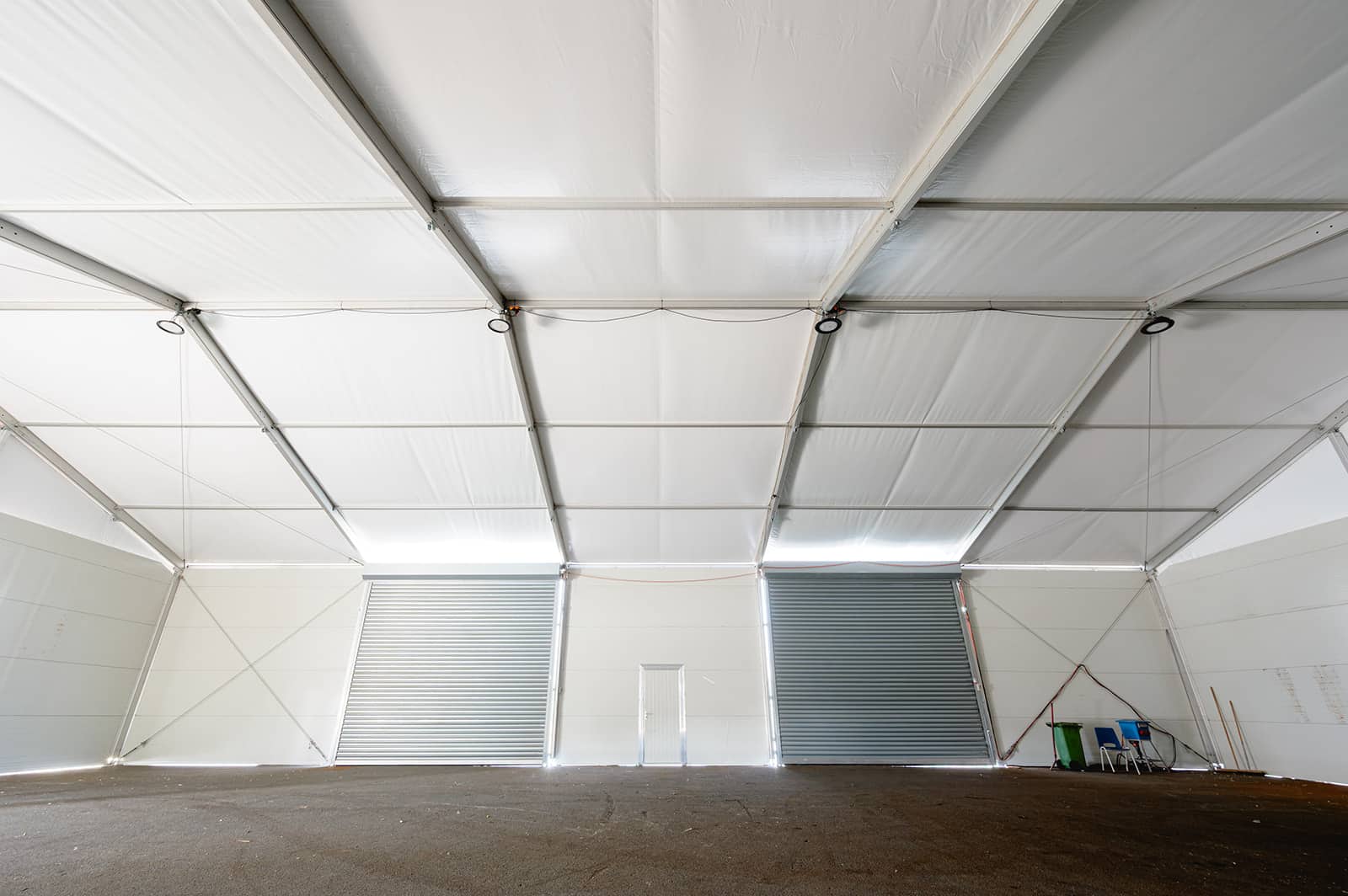

Our T3 tent hall is delivered as standard with 1 roller and wicket door. But you can further expand this partially insulated tent hall with extra options. These practical additions offer more comfort, safety, and functionality:

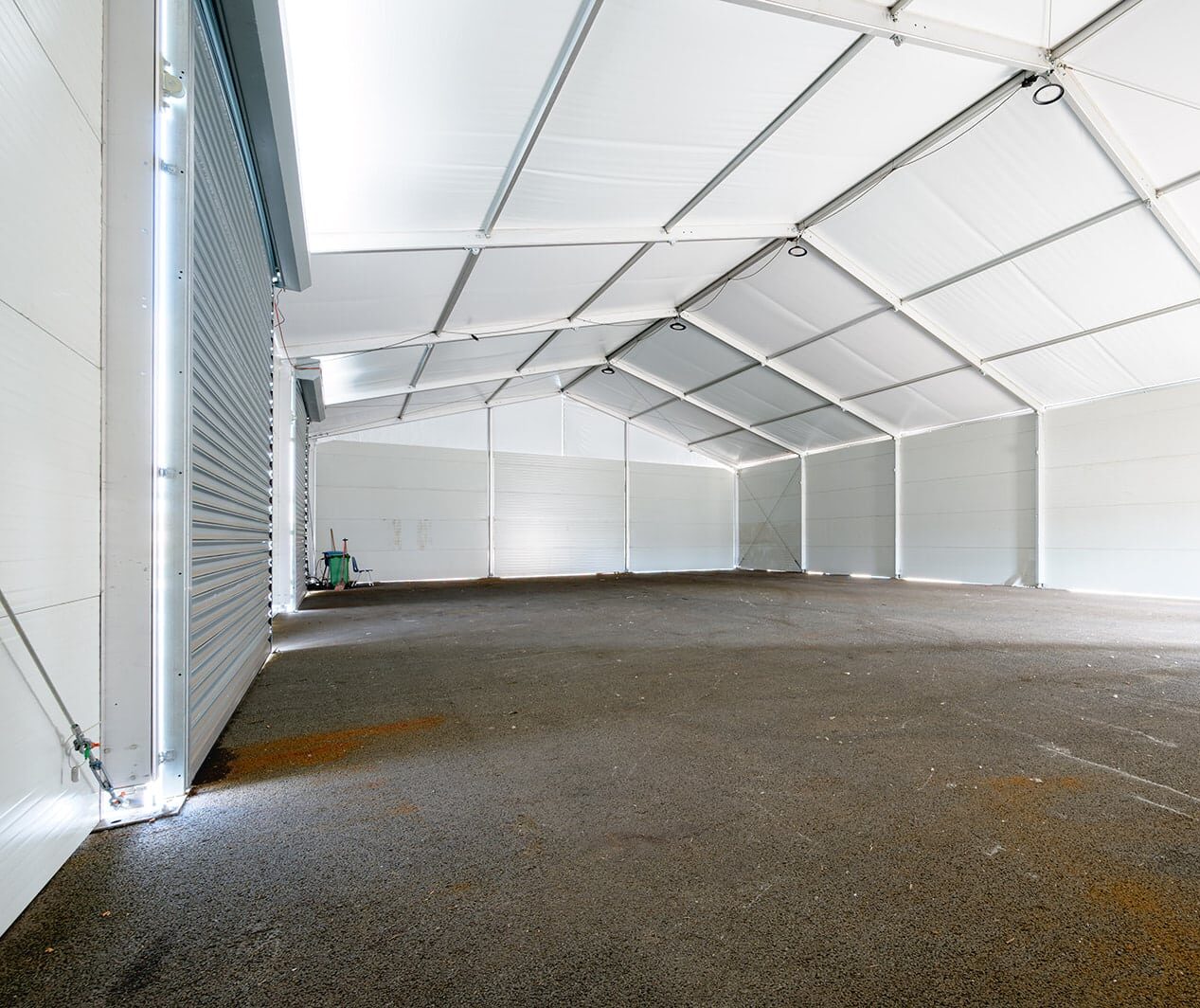

- Electric roller door (5 m x side height): Rolls up compactly above the door opening, ideal for spaces with limited height.
- Overhead door: Slides inward and lies parallel to the ceiling. Offers a neat appearance, perfect for logistical applications.
- Manual sliding door: A practical and cost-efficient access option.

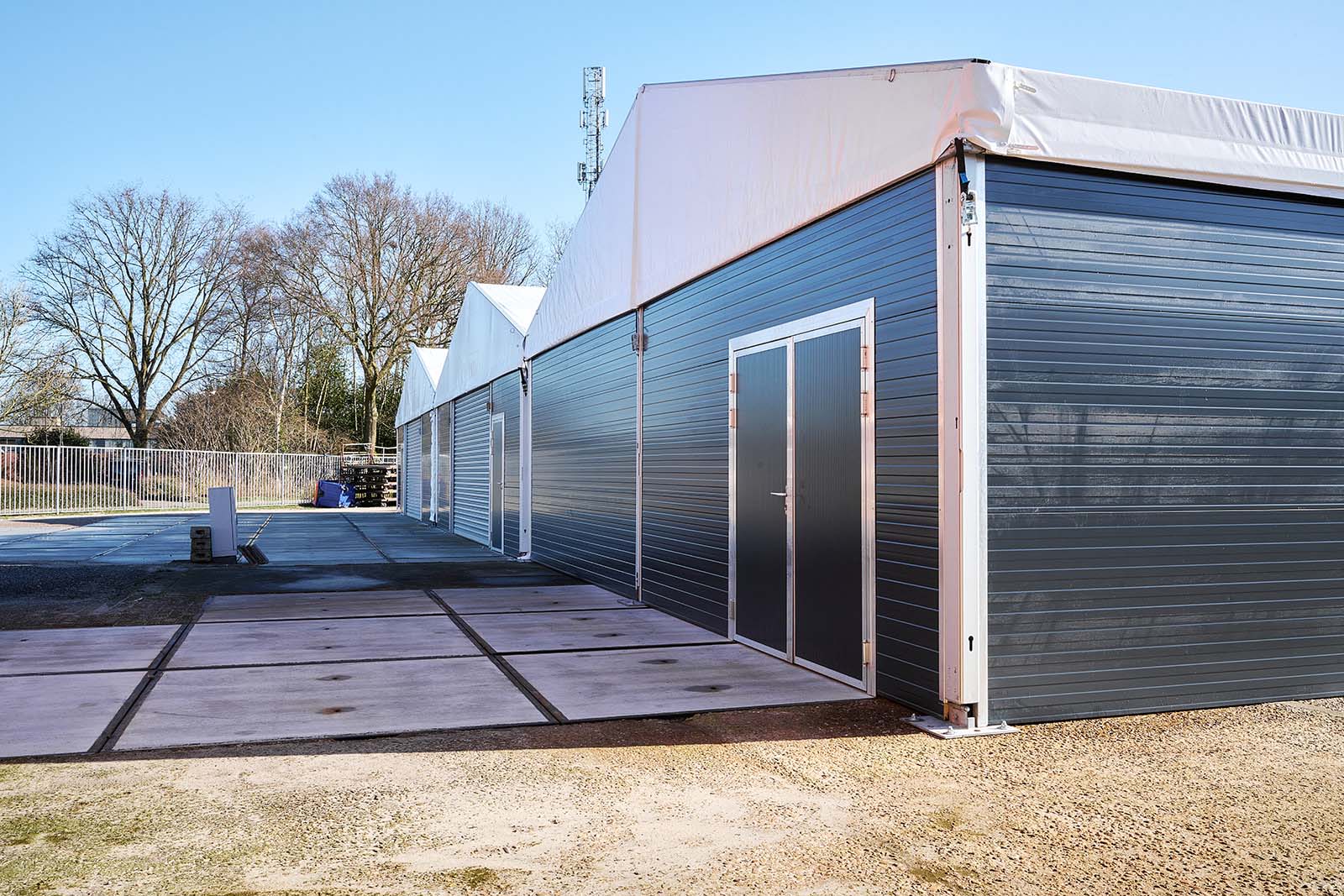

- Wicket doors: Ideal for safe and easy passage for people.
- Windows: Let in natural light for a pleasant working environment.
- LED lighting (250 watts): Ensure optimal lighting, even in the evening hours.
- Collision protection: Protect the tent hall and your goods from damage by vehicles.
- Ballast blocks: An excellent alternative anchoring for locations where ground pins are not possible.
- Sandwich panels in other RAL color: Possibility to adapt your tent hall to the environment or current business premises.
- PVC gutter including outlet: Ensures proper water drainage along the tent hall.
With these options, you make the T3 tent hall fully tailored to your situation. Contact us for more information or request a quote directly!
